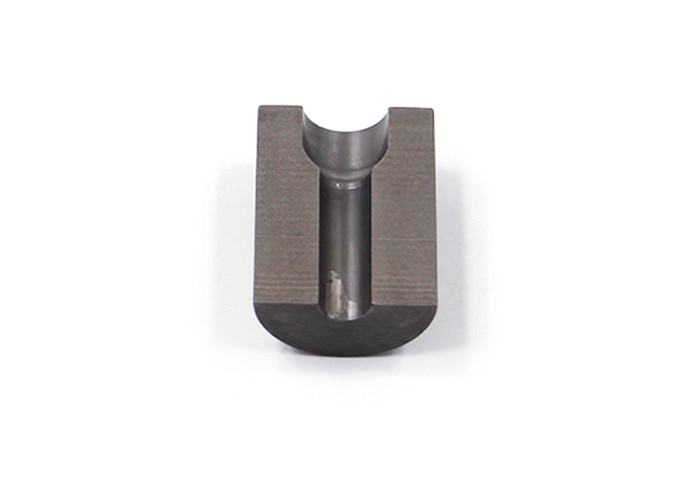

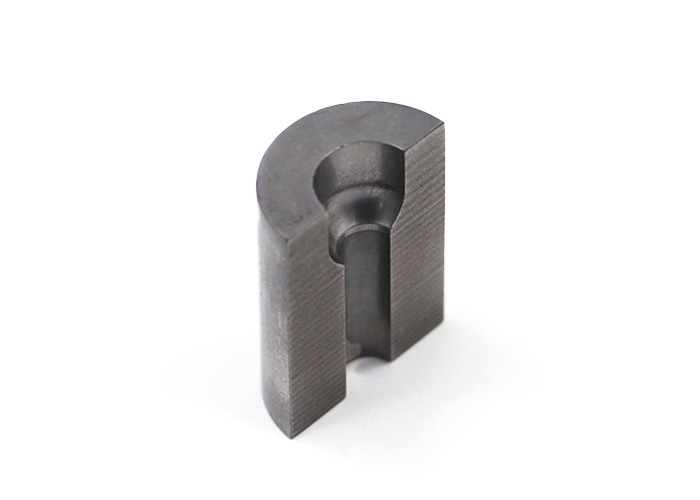

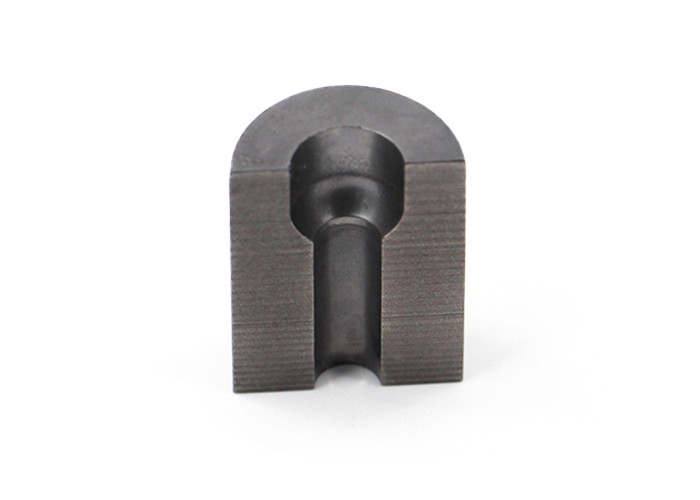

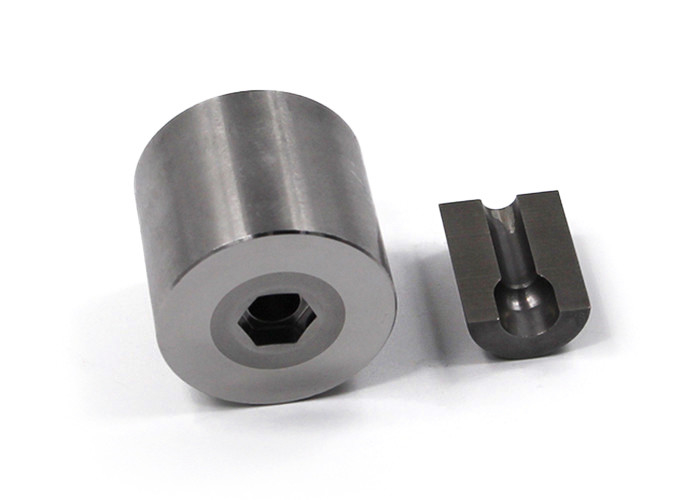

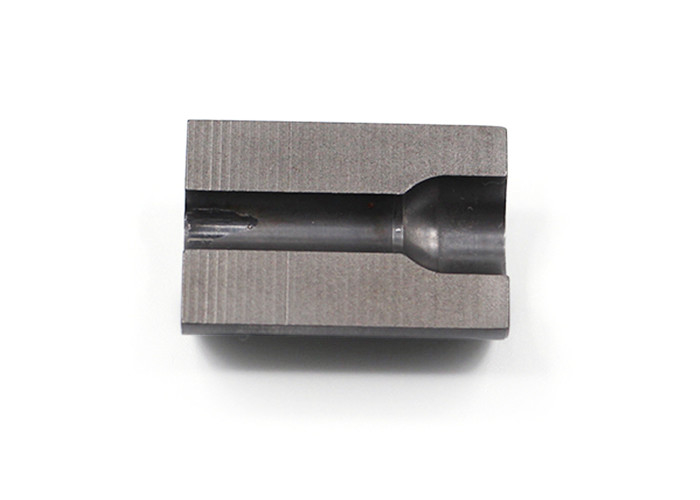

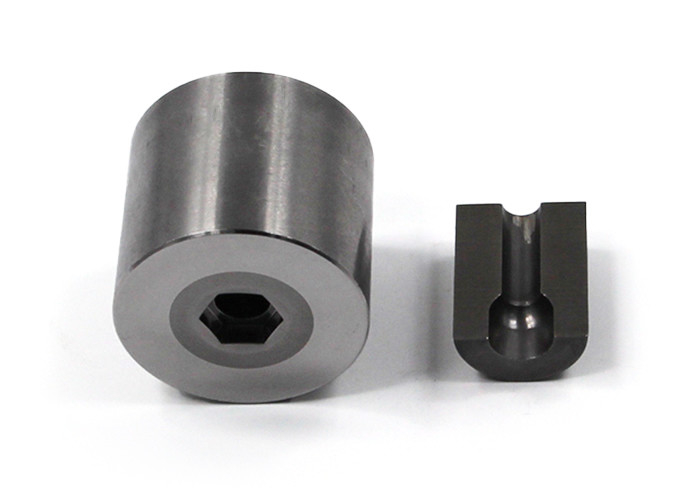

Name: Tungsten Carbide Cold Heading Die High-Temperature Resistant for Metal Fastener Shaft Parts Forming Replaceable Segmented Modules Low Maintenance Cost Wear Impact Resistant
Brand: Chongqing Henghui Precision Mold Co., Limited
SKU: Customized
Price: 1.00 USD
Availability: InStock

Nhà > các sản phẩm > cacbua vonfram chết >

Tungsten Carbide Cold Heading Die High-Temperature Resistant for Metal Fastener Shaft Parts Forming Replaceable Segmented Modules Low Maintenance Cost Wear Impact Resistant

ISO14580 Micro Screw

Thin Head Machine Micro Screw

Hexalobular Socket Micro Screw

Place of Origin:

China

Hàng hiệu:

Heng Hui

Chứng nhận:

ISO9001

Model Number:

Customized

Liên hệ với chúng tôi

Yêu cầu Đặt giá

Tungsten Carbide Cold Heading Die High-Temperature Resistant for Metal Fastener Shaft Parts Forming Replaceable Segmented Modules Low Maintenance Cost Wear Impact Resistant

Chi tiết sản phẩm

Product name:

Cold Heading Die

Mould Life:

250000-300000shots

Surface treatment:

Polishing

Application:

Industry

Size:

Customized Size

Drawing Format:

2D/(PDF/CAD)3D(IGES/STEP)

Quality:

100% Tested

Điều khoản thanh toán và vận chuyển

Minimum Order Quantity

10PCS

Giá bán

USD+2-1PCS

Packaging Details

Carton Box

Delivery Time

10-20Days

Payment Terms

T/T

Supply Ability

1000PCS+Month

Sản phẩm liên quan

Tungsten Carbide Molds: Precision Engineering For Industrial Applications High-Performance Tooling Solutions With Superior Wear Resistance

Nhận được giá tốt nhất

Wear-Resistant Tungsten Steel Tooling For Metalworking Plastic Molding

Nhận được giá tốt nhất

Heavy-Duty Punch Rod For Metal Stamping Industrial Forging Striker Shaft Alloy Steel Heat-Treated

Nhận được giá tốt nhất

High-Precision Master Die Precision Tooling For Production For Demanding Manufacturing Applications

Nhận được giá tốt nhất

Liên hệ với chúng tôi

+8613983025528

sales1@citool.com

86-023-60338218-60338218

Liên hệ ngay bây giờ

Mô tả sản phẩm

Products Description

Insert Material:We can suggest different carbide material according to different usage.

	Item	Co	Grain Size	Density	Hardness	TRS	Impact Strength	Application
Mediun-Grained		Co%	μm	g/cm²	HRA	Kgf/mm²	Kgf/m-cm²
	KG2	6.50%	2~3	14.90	90.5	320	0.28	Drawing die
	KG3	9%	2~3	14.61	89.3	340	0.52	Extrusion die
	KG5	12%	2~3	14.31	88.3	340	0.58	Extrusion die
	KG6	14%	2~3	14.12	87.3	320	0.65	Extrusion die
Coarse-Grained	ST6	15%	3~6	13.80	86.0	270	0.78	Stainless steel
	ST7	20%	2~6	13.40	85.3	270	0.80	Stainless steel
	EA65	18%	2~6	13.73	85.0	300	0.80	Carbon steel screw/cutting die
	VA80	20%	3~6	13.58	84.0	280	0.85	Impact resistance
	VA90	22%	6~9	13.39	82.5	240	0.90	Impact resistance
	EA90	24%	2~6	13.22	82.8	270	0.90	Impact resistance

Case Material:Our main case material is H13(SKD61) HRC46-48

SKD61(H13)
Chemical Composition	C	Si	Mn	P	S	Cr	Mo	V	W
Content (%)	0.39	1.15	0.44	0.021	0.007	5.12	1.3	0.94	0.06
	Cu	Ni
	0.05	0.06

Surface Treatment:TiN / TiAlN

Process

Factory

About Us

Chongqing Henghui Precision Mold Co., Ltd. has CNC lathes, CNC machining centers, CNC Cylindrical Grinding Machine, CNC EDM machine, CNC Cutting Machine, Milling Andam Drilling Machine ,etc.We also have various types testing equipment,such as Rockwell Hardness Tester, Projector ,3D Image Measuring Instrument, etc. Henghui using high-quality tungsten carbide material and professional vacuum heat treatment.We design,manufacturing and supply high-quality precision molds for customers who engaged in cold heading and hot upsetting industries.About our molds , the relative standard deviation can be controlled within 0.005mm, concentricity can be controlled within 0.01mm. Strict accordance with ISO9001:2015 quality management system requirements of the operation,can ensure provide timely and high-quality service for our customers.Our products has exported to Southeast Asia,Europe and the United States "Customer first, quality first, technology first, dedicated service" is our consistent operating principles.Warmly welcome to negotiate business with us.

Inspection Equipment

Packing and Delivering
