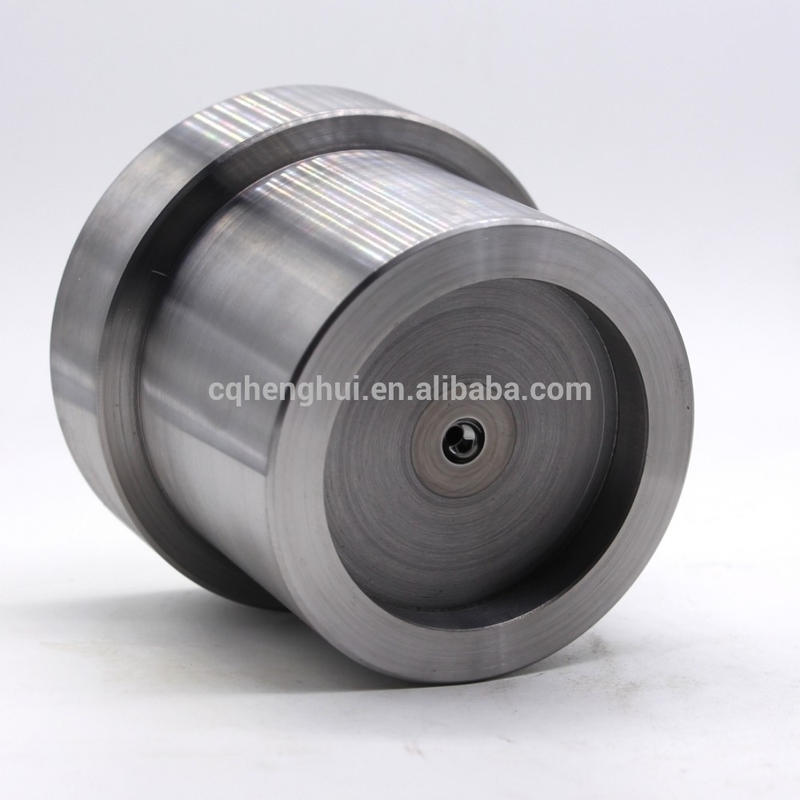

Name: Tungsten Carbide Cold Heading Dies High-Precision Performance For Mass Production Demand Applications Fasteners Bearings Automotive Components Long Service Life
Brand: Chongqing Henghui Precision Mold Co., Limited
SKU: Customized
Price: 1.00 USD
Availability: InStock

Nhà > các sản phẩm > Khuôn rèn nguội >

Tungsten Carbide Cold Heading Dies High-Precision Performance For Mass Production Demand Applications Fasteners Bearings Automotive Components Long Service Life

Self-Tapping Stainless Steel Screws

Flat Head Stainless Steel Screws

Customized Stainless Steel Screws

Place of Origin:

CHINA

Hàng hiệu:

Heng Hui

Chứng nhận:

ISO9001

Model Number:

Customized

Liên hệ với chúng tôi

Yêu cầu Đặt giá

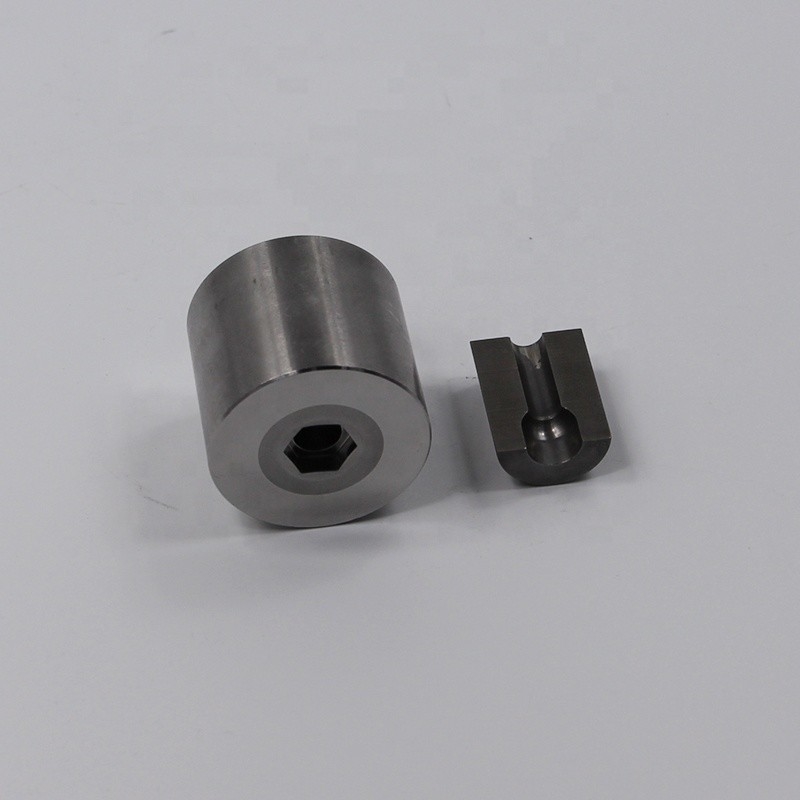

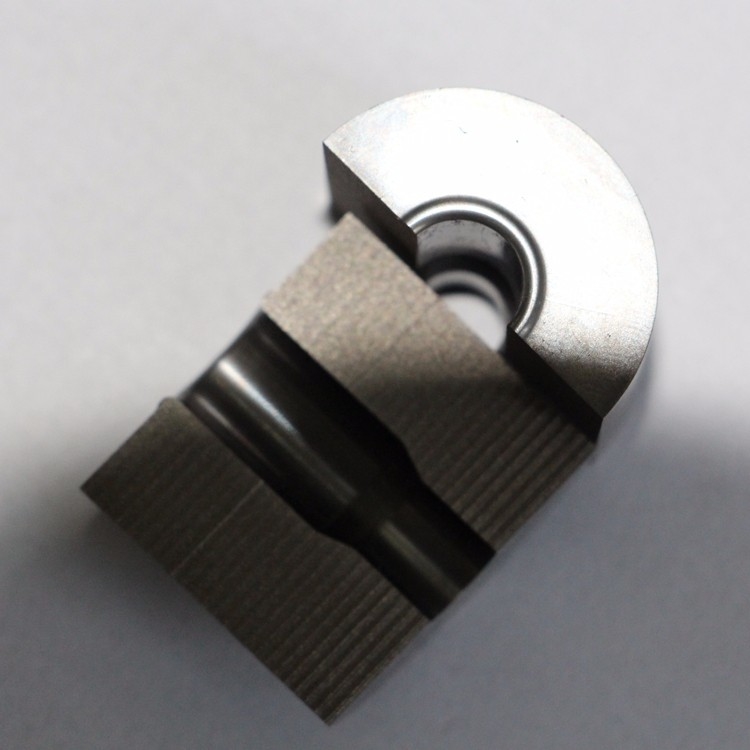

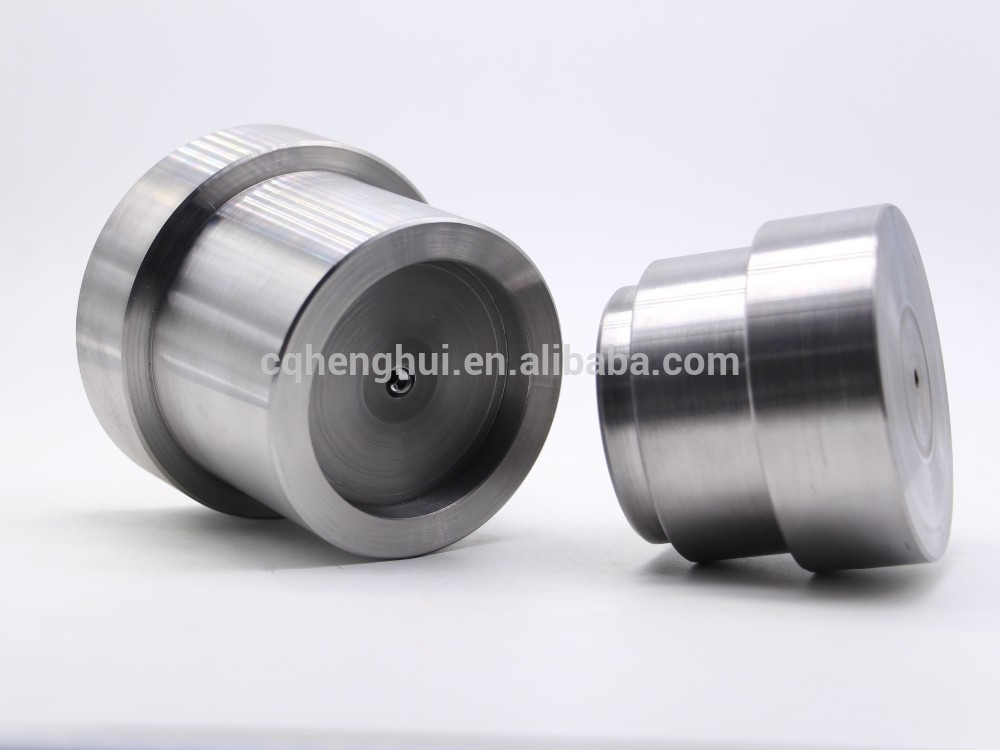

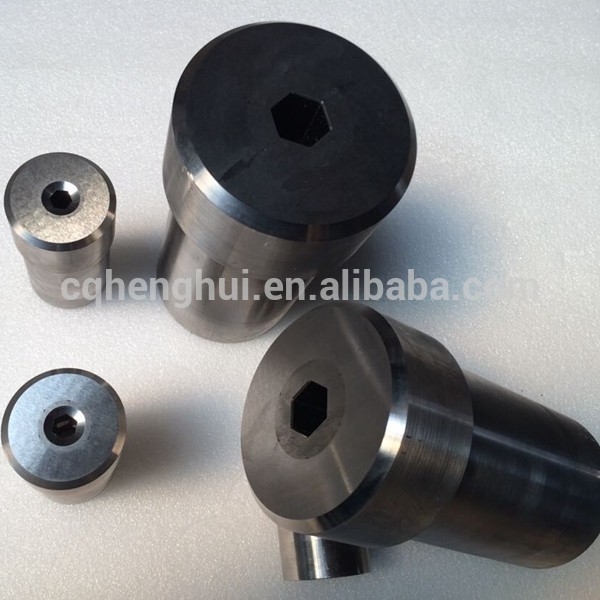

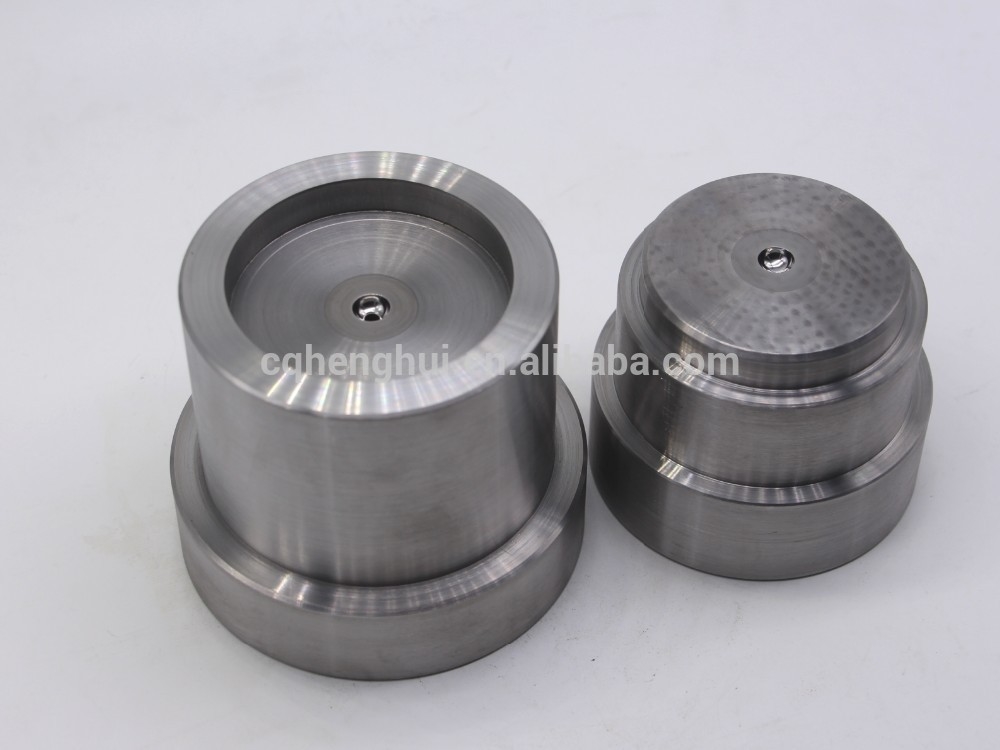

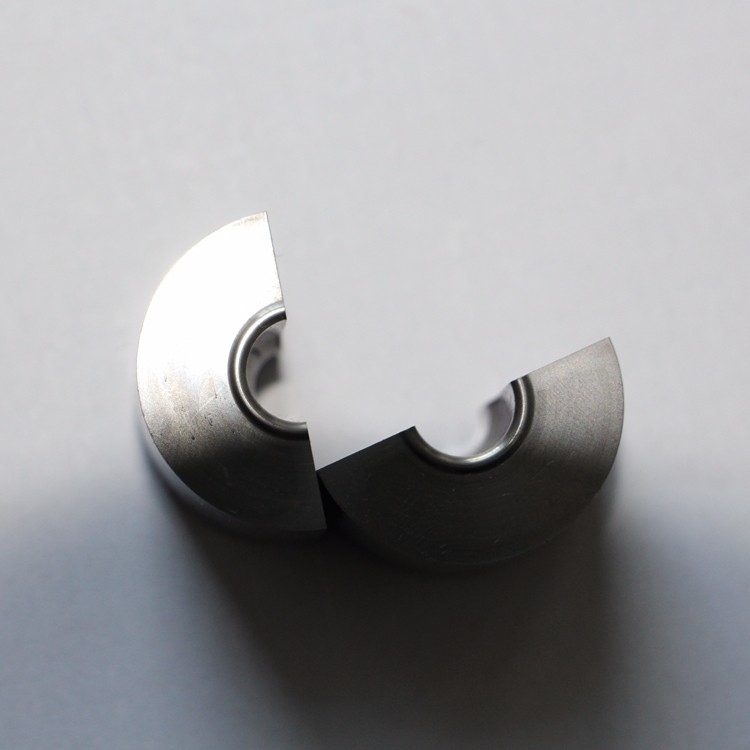

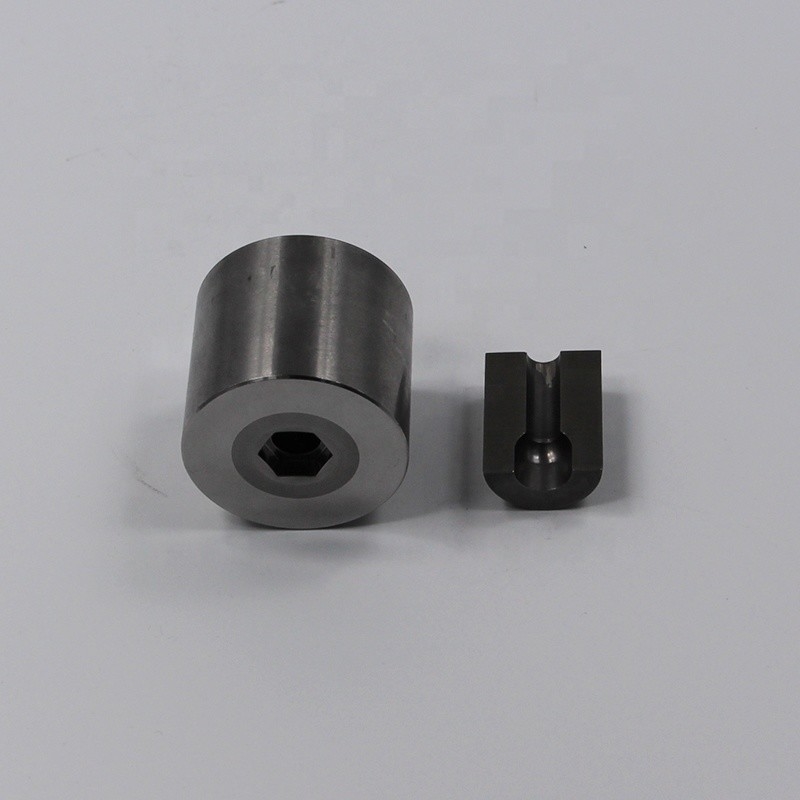

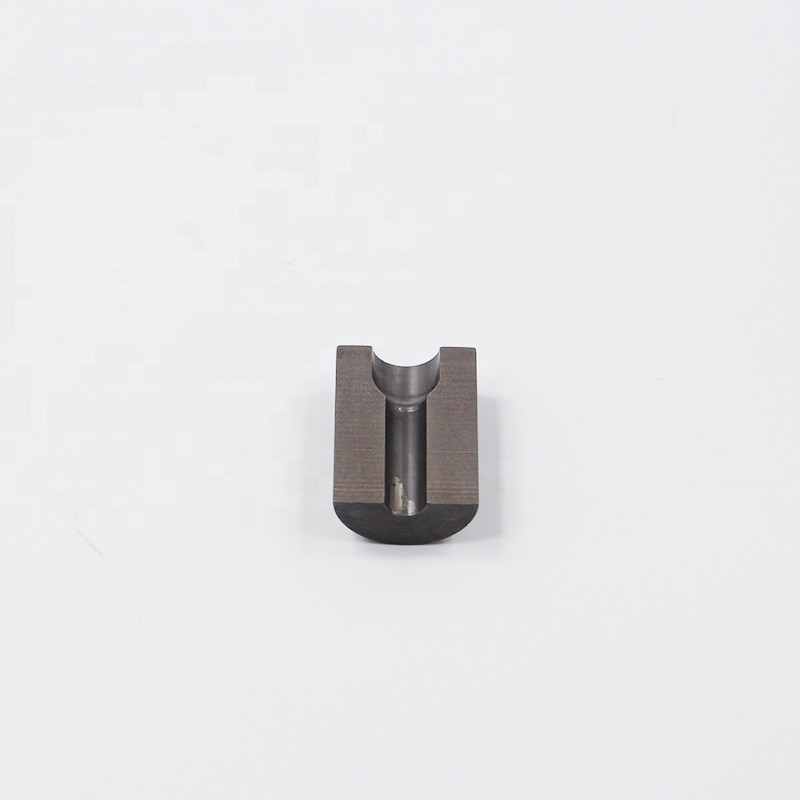

Tungsten Carbide Cold Heading Dies High-Precision Performance For Mass Production Demand Applications Fasteners Bearings Automotive Components Long Service Life

Chi tiết sản phẩm

Product name:

Cold Heading Die

Size:

Customized

Material:

Carbide die

Surface treatment:

Polishing

Mould Life:

250000-300000shots

Feature:

High Precision

Điều khoản thanh toán và vận chuyển

Minimum Order Quantity

10 PCS

Giá bán

USD 1-2 PCS

Packaging Details

Carton Box

Delivery Time

10-20Days

Payment Terms

T/T, L/C

Supply Ability

1000 PCS Month

Sản phẩm liên quan

băng hình

2025 New Design CNC Machining Cold Forging Die HSS Material Long Life

Nhận được giá tốt nhất

băng hình

Factory Outlet New Design Customized Cold / Hot Forging Tungsten Carbide Cold Heading Dies

Nhận được giá tốt nhất

High Quality Strong Beam Die Carbide Shaped Forming Dies Corrosion Resistance

Nhận được giá tốt nhất

băng hình

China Factory Customized Cold / Hot Forging Tungsten Carbide Cold Heading Dies

Nhận được giá tốt nhất

Liên hệ với chúng tôi

+8613983025528

sales1@citool.com

86-023-60338218-60338218

Liên hệ ngay bây giờ

Mô tả sản phẩm

Products Description

Insert Material:

We can suggest different carbide material according to different usage

	Item	Co	Grain Size	Density	Hardness	TRS	Impact Strength	Application
Mediun-Grained		Co%	μm	g/cm²	HRA	Kgf/mm²	Kgf/m-cm²
	KG2	6.50%	2~3	14.90	90.5	320	0.28	Drawing die
	KG3	9%	2~3	14.61	89.3	340	0.52	Extrusion die
	KG5	12%	2~3	14.31	88.3	340	0.58	Extrusion die
	KG6	14%	2~3	14.12	87.3	320	0.65	Extrusion die
Coarse-Grained	ST6	15%	3~6	13.80	86.0	270	0.78	Stainless steel
	ST7	20%	2~6	13.40	85.3	270	0.80	Stainless steel
	EA65	18%	2~6	13.73	85.0	300	0.80	Carbon steel screw/cutting die
	VA80	20%	3~6	13.58	84.0	280	0.85	Impact resistance
	VA90	22%	6~9	13.39	82.5	240	0.90	Impact resistance
	EA90	24%	2~6	13.22	82.8	270	0.90	Impact resistance

Case Material:Our main case material is H13(SKD61) HRC46-48

SKD61(H13)
Chemical Composition	C	Si	Mn	P	S	Cr	Mo	V	W
Content (%)	0.39	1.15	0.44	0.021	0.007	5.12	1.3	0.94	0.06
	Cu	Ni
	0.05	0.06

Surface Treatment:TiN / TiAlN

Process

Product advantages

1. Extended Tool Life Wear Resistance
Utilizes premium tungsten carbide substrates with TiAlN coatings, extending service life by 200-300% vs conventional dies.
Maintains ≤0.005mm dimensional drift over 1M+ cycles for sustained precision.
2. High-Speed Production Capability
Enables 300-500 parts/minute output with integrated cooling channels minimizing thermal deformation.
Quick-change die systems reduce setup downtime by 70% for flexible batch production.
3. Material Efficiency Cost Savings
Achieves 99% material utilization via optimized grain flow design, reducing scrap costs by 40%.
Compatible with low-to-high carbon steels, stainless alloys, and non-ferrous metals (Cu, Al).
